SiC Beam rau Fais Fab Fais Kab Tshuab Insulator
Sic beam rau cov hluav taws xob fais insulator firing qhia
Qhov no yog qhov sib xyaw ua ke (silicon infiltrated) silicon carbide, tab tom ua xoom porosity los ntawm kev sau porosity nrog silicon hlau (Si). Vim tias nws lub cev qias porosity yam ntxwv, thermal conductivity ntau tshaj ob zaug ntawm Oxide Bonded SiC's, qhov siab zog yog ntau dua 5 zaug dua piv rau Oxide Bonded SiC.
Specification rau Sic beam rau cov hluav taws xob fais laj kab insulator firing
Yam khoom | Chav tsev | Index |
Daim ntawv teev npe kub | ℃ | 1380 |
Kev ceev | g / cm3 | ≥ 3.02 |
Qhib porosity | % | ≤ 0.1 |
Bending zog | Mpa | 250 (20 ℃) |
Mpa | 280 (1200 ℃) | |
Modulus ntawm elasticity | Gpa | 330 (20 ℃) |
Gpa | 300 (1200 ℃) | |
Thermal conductivity | W / Mk | 45 (1200 ℃) |
Coefficient ntawm thermal expansion | K-1 × 10-6 | 4.5 |
Rigidity | 13 | |
Acid thiab alkali tsis kam | Zoo heev |
Sic beam rau hluav taws xob fais insolator firing
nta
RBSIC (SiSiC) tus tshwj xeeb feature yog nws lub peev xwm los tuav lub zog ntawm chav tsev kub txog li ntawm 1,350 ° C. Nws tseem muaj oxidation tsis kam, tshuaj lom neeg kuj thiab hnav tsis kam. Siv cov nqaj nyom, rau cov tub ntxhais, tshuab hluav taws xob thiab hluav taws xob thiab lwm yam khoom siv hluav taws xob.

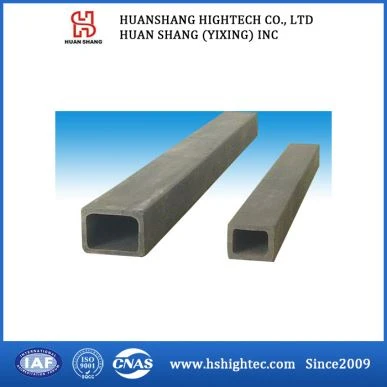

Peb muaj kab lig kev cai, nqaj hlau tsoo thiab tshwj xeeb duab nqaj.
Kev sib tsoo-ntses ua ke silicon carbide beam yog siv rau kabmob ntawm qhov cub tawg, shuttle cub tawg thiab muaj chaw rauv taws. Cov tshuaj tiv thaiv-bonded silicon carbide nqaj yog ib qho txawv los ntawm kev sib zog ua hauj lwm loj, tsis muaj dabtsi yog kev hloov lub cev thiab lub neej ntev kev ua haujlwm, thiab yog ib qho chaw zoo nkauj rau hauv cov ntaub pua chaw kom huv thiab qhov cub hluav taws xob. cov tshuaj tiv thaiv-bonded silicon carbide, nrog thermal conductivity zoo, txuag lub zog noj yig.
Peb Qhov Zoo Tshaj Plaws
a. Txuj kev mob ntau heev: Peb tau tshwj xeeb hauv cov xim silicon carbide thiab silicon nitride ceramics nrog 10 xyoo.
b. Ua kom tiav cov chaw ntau lawm: muaj cov cuab yeej 18 cubic meter shuttle kilns rau 4 poob siab, cov cav tov rau 20sets, lub tshuab hluav taws xob rau 4 teev thiab lwm yam khoom zoo nkauj. Peb cov kws kho mob yuav tau ua kom tiav kev tu vaj tse rau cov cav tov no kom lawv ua haujlwm zoo.
c. Cov khoom zoo raw khoom: peb tsuas yog xaiv cov khoom siv los ntawm cov Hoob Hwm Siem, lawv zoo tshaj thiab cov khoom noj khoom haus loj tshaj plaws hauv Chaw Tuam Tshoj.
d. Lub sij hawm luv luv: Yog tias muaj ib lub thawv 20-30 hnub. Peb kuj tau npaj qee cov qauv qis thiab rods, yog tias koj xav tau 3-5 pcs, peb tuaj yeem xa sai sai.
e. Cov khoom noj zoo: cov ntawv npuag npuaj npau ntawm cov hlab pas thiab cov pas nrig ua ntej xa nkoj, cov hnab yas khi rau hauv cov raj hnub tiv thaiv hauv qhov chaw, txhua tus pas nrig yuav tiv thaiv cov thawv tub yees. Thaum kawg yuav tau ntim nrog seaworthy pob los yog hauv rooj ntoo.
f. Cov kev pab cuam tom qab muag: Tshaj 60% cov khoom muag muag rau cov teb chaws Asia, Middle East thiab Europe, thiab tag nrho cov khoom raug tso siab los ntawm cov neeg txawv teb chaws thiab txawv teb chaws.
Neeg muaj lus nug
1. Kev pab cuam 24-teev Online
Thov tuaj yeem tiv tauj peb. Peb cov neeg muag kev muag khoom yuav muab rau koj nrog 24 xuab moos ua ntej muag,
2. Cov nqi sib tw
Tag nrho peb cov khoom muaj khoom ncaj qha los ntawm lub Hoobkas. Yog li tus nqi yog qhov sib tw.
3. Warranty
Tag nrho cov khoom muaj ib lub warranty tau ib-ob xyoos.
5. Cov Chaw Muag Khoom
Lub tuam txhab tam sim no nrhiav neeg muag khoom thiab tus neeg sawv cev thoob lub ntiaj teb. Kev xa tawm sai thiab kev pab cuam tom qab kev muag khoom yog qhov tseem ceeb, uas ua rau peb yog koj tus khub txhim khu.
Cim npe nrov: SiC kos rau hluav taws xob fais insulator firing, Tuam Tshoj, tuam ntxhab, lwm tus neeg, Hoobkas, nqi
